Crown 4" - 10

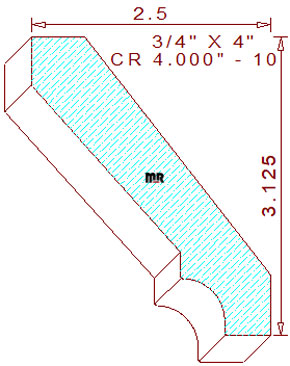

This beautiful 4" - 10 crown mould measures 4.000" wide by .750" thickness. The profile is comprised of a 1/2" tall vertical line on top, connected to a 3.905-degree angled line in the center, attached to a 9/32" tall line with a 7/16" radius cove and a 15/32" broad segment at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/8" tall with a projection of 2-1/2" wide. Three high points in the detail were deliberately positioned on the same plane, this specialized design feature will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.
