Crown 3-1/2" - 24

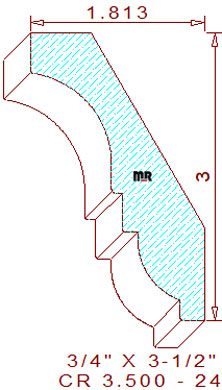

This lovely 3-1/2" - 24 crown mould measures 3.500" wide by .750" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The custom profile is composed of a 27/64" tall line joined to a 61/64" cove in the upper portion, attached to a 9/64" broad line connected to a 13/32" tall by 5/32" perpendicular lines in the center. It merges with a 43/64" radius ovolo with a 7/32" tall by 1/4" broad squared lines at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 3" tall with a projection of 1-13/16" wide.
