Crown 3-1/4" - 29

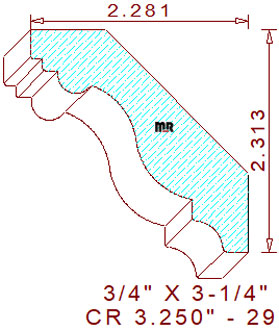

This luxurious 3-1/4" - 29 crown mould measures 3.250" width by .750" thickness enabling the use of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The sumptuous terminating profile contains a 5/16" vertical line on the top left. The tall fillet connects to a 1/8" by 1/8" perpendicular notch attached to a 5/32" horizontal line. A 3/8" half circle merges with a graceful two tangent radius forming the cyma recta in the center, with a 5/16" cove flanked by a 7/32" vertical and a 9/32" horizontal line segment on the bottom's right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-5/16" tall with a projection of 2-9/32" across the top.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm with a twenty-five-degree back clearance angle will rough grind a set of high-speed steel cutters in a minimal amount of time. Review our article on the importance of having the profile grinder level. This commentary will ensure prolonged use of your machinery while maintaining consistent perfection when manufacturing the cutters.
