Crown 3-1/16" - 5

Crown 3-1/16" - 5

Crown 3-1/16" - 5

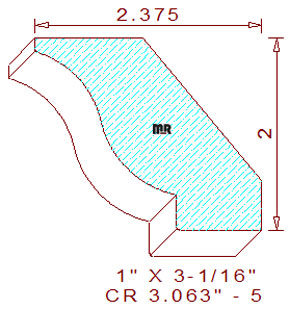

This 3-1/16" - 5 crown mould measures 3.062" wide by 1.000" thickness. Please look in our bevels category (search by degree) for a set of beveled moulding cutters appropriate for this profile design. We have intentionally designed all our crown and coves with back bevels of forty-five degrees and under, which will be milled on the right vertical cutter head, all forty-five degree back bevels and higher, will be milled on the left vertical cutter head.

The stylish profile is comprised of a 9/64" tall vertical fillet at the top, attached to a cyma recta in the middle, connected to a .325" tall by .896" wide fillet at the bottom. This area will work well with applied moulding on the bottom. The spring angles are fixed at forty and fifty degrees. These dedicated bevels will set the installed height at 2" tall, with a 2-3/8" wide projection.

Please read our commentary axial constant position for crown back angles, this article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the machine is axially calibrated correctly.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.863
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.330
Top Cutter Head
Width: 3.063
Depth of Cut: 0.731
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$248.90
Not Needed
Total:
$581.90
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$264.15
Not Needed
Total:
$616.15
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$279.41
Not Needed
Total:
$650.41
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
