Crown 2-7/8" - 11

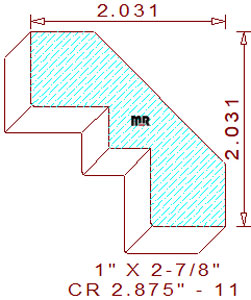

This southwestern 2-7/8" - 11 crown mould measures 2.875" wide by 1.000" thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of five-quarter lumber. The stepped symmetrical profile is composed of a 25/32" tall vertical line segment on the top left, attached to a 13/16" broad horizontal line and two 7/16" perpendicular lines in the center, joined to a 13/16" tall by 25/32" broad squared lines at the bottom of the design. The spring angles are fixed at forty-five degrees . These explicit back bevels keep the inner profile parallel to the wall and ceiling; they also set the installed height at 2-1/32" tall with a projection of 2-1/32" wide.

Mirror Reflections provides the cut steel size on all their molding template designs, this vital information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of their enthusiasm for the overall success of your woodworking business.
