Cove Moulding 5-11/16"

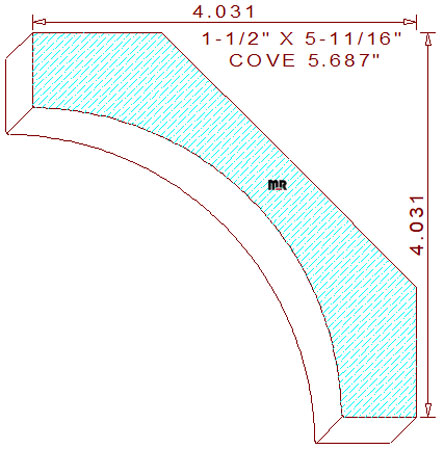

This terminating cove moulding 5-11/16 measure 5.687" wide by 1.500" thickness, requiring the use of eight quarter lumber for milling on an industrial moulder. The bold concave profile is comprised of a 25/32" tall vertical line on the top left, connected to a 3-1/2" radius cove in the center with a 25/32" wide horizontal line segment at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at identical dimensions of 4-1/64" tall and wide.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.687" / Depth of Cut = .924" (top knives.)

Thickness = 1.500" / Depth of Cut = .959" (right blades) & .959" (left cutters.)
