Cove Moulding 4-1/2" - 7

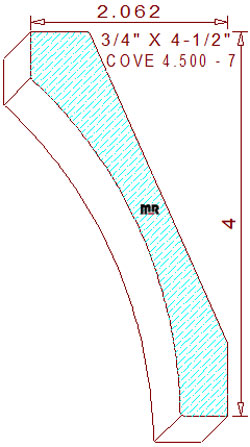

This custom cove molding 4-1/2" - 7, measures 4.500" wide by .750" thickness, allowing the use of four quarter lumber for milling on a commercial-grade molder. The scooped profile is composed of a 1/2" tall vertical line segment on the top left. This area joins to a 4-27/32" concave semicircular arc in the center, with a 1/2" full horizontal fillet on the bottom right side of the design. The spring angles are at twenty-four and sixty-six degrees, and they are included in the downloadable DXF file available for purchase below. These precise back bevels keep the inner sections of the profile parallel to the wall and ceiling as well as set the installed height at 4" tall with a projection of 2-1/16" wide.

Mirror Reflections provides the cut steel size on all their template & knife designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.500" / Depth of Cut = .593" (top knives).

Thickness = .750" / Depth of Cut = .312" (right blades) & .812" (left cutters).
