Cove Moulding 3-1/2" - 4

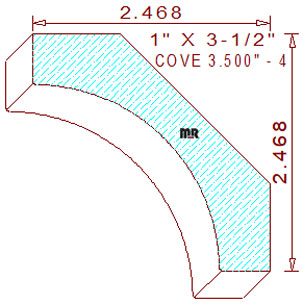

This Cove Moulding 3-1/2" - 4 measures 3.500" wide by 1.000" thickness. The symmetrical profile is comprised of a 1-15/16" radius cavetto in the center, connected to a 17/32" tall vertical line on the top and a 17/32" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-15/32" tall and wide.

Two high points in the design were intentionally positioned on the same plane, our dedicated design features will assure excellent hold down conditions while milling the detail on an industrial moulder providing the pressure shoe is parallel to the bed plates. Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.500" / Depth of Cut = .557" (top knives).

Thickness = 1.000" / Depth of Cut = .645" (right blades) & .645" (left cutters), only one template is required for the left and right cutters.
