Cove Moulding 3-7/16" - 2

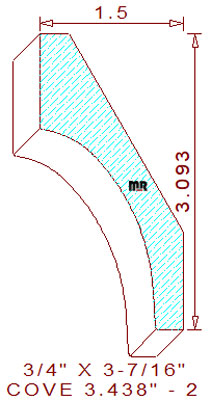

This unique cove moulding 3-7/16" - 2 measures 3.428" width by .750" thickness, requiring a 3-11/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The tall terminating profile comprises a one-inch high line on the top left. The vertical line connects to a two tangent radius elliptical-shaped cavetto in the center with a 19/64" flat line on the design's bottom right corner. The spring angles are fixed at thirty and sixty degrees, these precise back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the height position at 3-3/32" tall with a 1-1/2" projection across the top.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.437" / Depth of Cut = .548" (top knives).

Thickness = .750" / Depth of Cut = .153" (right blades) & .776" (left cutters).
