Chair Rail 3" - 100

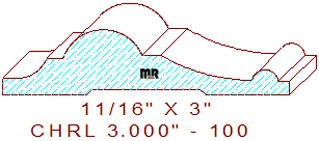

This creative 3" - 100 chair rail measures 3.000" wide by .687" thickness. The beautiful profile is composed of an off-centered 53/64" wide half-round circle flanked by small horizontal line segments, attached to a 29/64" wide congee made from a 21/64" cove on the left side, the opposite side consists of a shallow two tangent radius concave semicircle, joined to a 9/32" wide half round bead joined with a 1/8" broad horizontal line, leaving a 9/64" thickness dimension on the right edge of the design. Browse our backout category for a suitable relief cut for this detail; we’re confident you will find a functional design to suit your needs.

Need some supplies for your milling operation? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your toolroom.
