Door/Window Casing 4-5/8" - 3

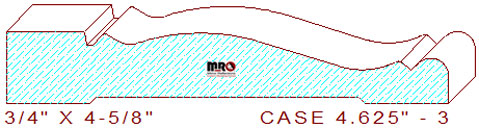

This unique 4-5/8" - 3 door/window casing measures 4.625" wide by .750" thickness, allowing the pattern to be milled out of four-quarter lumber. The one-of-a-kind profile is comprised of a 27/64" broad segment with a 9/64" vertical drop in elevation, joined to a 1/16" wide sunk fillet on the top left. It's attached to a slight bidirectional chamfer merged with elongated wave-like curves with a beveled edge in the center, connected to a 3/16" radius thumbnail-shaped semicircular arc on the right of the pattern. The outer left edge of the detail was intentionally left square for the use of one of our many backband patterns; here's one profile we think matches well with this design, backband 1.000" - 7. We offer a 3-1/2" version of this detail for your review and consideration, door/window casing 3.500" - 218.
