Door/Window Casing 4" - 134
Door/Window Casing 4" - 134

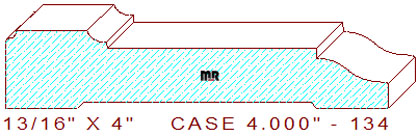

This elegant 4" - 134 door/window casing measures 4.000" wide by .812" thickness. The attractive profile is comprised of a 3/4" wide raised fillet with a 1/16" cove on the outer edge and a 3/16" cove on the inside edge with a 5/64" vertical step, connected to a 2-3/16" wide straight line and a 3/32" vertical step with two 1/2" radius arc tangent off of one another creating an ogee on the thin side of the design. We have a couple of other similar profiles in the same width for your review and consideration,
door casing 4.000" - 49, window casing 4.000" - 117 and
door/window casing 4.000" - 121.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.722
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
