Door/Window Casing 4" - 117

Door/Window Casing 4" - 117

Door/Window Casing 4" - 117

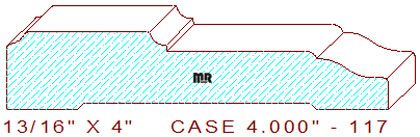

This stylish 4" - 117 door/window casing measures 4.000" wide by .812" thickness. The nice-looking profile comprises a 1-5/16" broad horizontal line flanked by a 3/16" cove on the outer edge and a 5/32" cavetto with a 1/16" vertical drop on the inner edge, connected to a 1-9/16" broad horizontal line with a 1/8" radius edge, attached to two tangent 1/2" radiuses creating a cyma reversa on the thin side of the design. We have a couple of other similar profiles in the same width for your review and consideration, door/window casing 4.000" - 49, door/window casing 4.000" - 121 and door/window casing 4.000" - 134.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.696
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$280.50
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$299.50
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$318.50
Total:
$656.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
