Door/Window Casing 3-9/16" - 6
Door/Window Casing 3-9/16" - 6

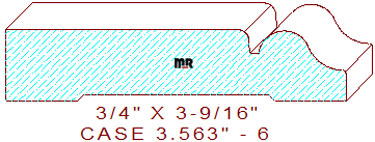

This innovative 3-9/16" - 6 door/window casing measures 3.563" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The attractive profile is composed of a 2-9/16" broad line segment with a 1/8" rounded inside edge in the center, attached to a 3/32" wide by 1/4" deep sunk fillet joined to a two tangent radius cyma reversa with a 3/64" eased edge on the right side of the design. The outer edge on the left was intentionally left square for the use of many of our
radius edges or backband profiles; here are just a couple of patterns you may want to review and consider,
backband 1.125" and
backband 1.125" - 13.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.621
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
