Door/Window Casing 3-1/2" - 147

Door/Window Casing 3-1/2" - 147

Door/Window Casing 3-1/2" - 147

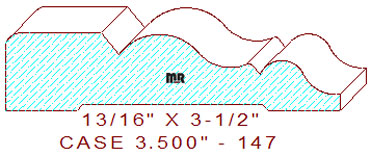

This enchanting 3-1/2" - 147 door/window casing measures 3.500" wide by .812" thickness, permitting the detail to be milled from four-quarter lumber. The attractive profile comprises a one-inch broad horizontal line with a 5/32" radius edge on the top left. It's connected to a beveled line transitioning into two tangent radius cyma reversa, joined to another smaller chamfered line with another cyma reversa located on the right side of the pattern.

This attractive door/window casing is available in a few different size widths, door/window casing 2.250" - 17, door casing 3.250" - 4, door casing 4.000" - 19 and door/window casing 5.000" - 13. We also have a couple of various baseboards that would complement this pattern beautifully for your review and consideration, baseboard 8.000" - 74, baseboard 8.000" - 48, baseboard 5.500" - 8, and baseboard 3.250" - 4.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.643
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
