Baseboard 5-1/2" - 8

Baseboard 5-1/2" - 8

Baseboard 5-1/2" - 8

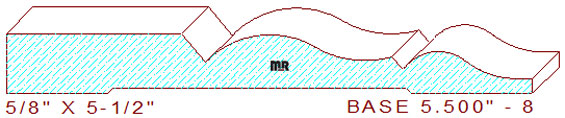

This decorative 5-1/2" - 8 base mould measures 5.500" wide by .625" thickness, permitting the pattern to be machined out of four-quarter lumber. The fancy profile is comprised of a 2-37/64" wide by 19/64" deep flat line with an inside beveled edge on the top left. it's connected to an elegant two tangent radius s-shaped curvature with a 3/16" wide splay faced angled line in the center. It joins another smaller ogee leaving a 5/32" thickness dimension on the right side of the design.

These striking baseboards are available in a few different widths for your review and consideration, baseboard 8.000" - 74, baseboard 8.000" - 48 and baseboard 3.250" - 4. We also have a few assorted width door casings that would complement this pattern beautifully, door casing 2.250" - 17, door casing 3.250" - 4, door casing 3.500" - 147 and door casing 5.000" - 13.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.468
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$355.50
$355.50
Total:
$711.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$380.50
Total:
$761.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$405.50
Total:
$811.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
