Door/Window Casing 3-1/4" - 31
Door/Window Casing 3-1/4" - 31

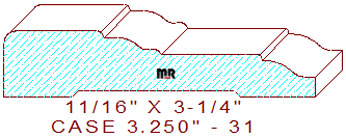

This stylish 3-1/4" - 31 ogee door/window casing measures 3.250" wide by .687" thickness. The colonial style profile is comprised of a 1-3/64" broad straight line with a 1/8" eased outer edge and a 1/16" radius step, connected to a three tangent radius cyma reversa, joined to a 1-1/16" wide by 1/16" deep stepped line with a two tangent radius ogee on the thin side of the design. We offer a few other similar patterns in the same width for your review and consideration,
door casing 3.250" - 104, window casing 3.250" - 113, casing 3.250" - 114, and
door/window casing 3.250" - 125.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.479
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
