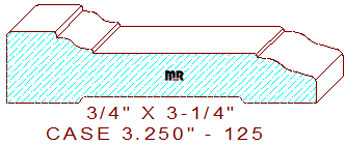

Door/Window Casing 3-1/4" - 125

This common 3-1/4" - 125 door/window casing measures 3.250" wide by .750" thickness, allowing the detail to get milled from four-quarter lumber. The good-looking profile composes a 15/32" wide by 1/16" tall raised fillet with a 1/16" eased edge on the top left. Connected to a two tangent radius ogee with a 3/64" rounded drop in elevation that transitions into a 1-23/32" wide horizontal line in the center, joined to a 3/64" eased step merged with two 1/4" radius semicircles creating the ogee with a 3/32" eased edge, leaving a 9/32" thickness dimension on the right side of the pattern. We have a few similar designs in the same width for your review and consideration, door casing 3.250" - 31, window casing 3.250" - 104, door casing 3.250" - 113, and door/window casing 3.250" - 114.
