Door/Window Casing 3-1/4" - 147
Door/Window Casing 3-1/4" - 147

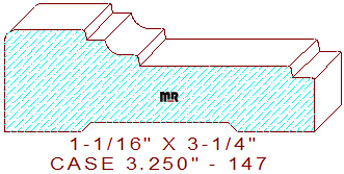

This beautiful 3-1/4" - 147 door/window casing measures 3.250" width by 1.062" thickness, necessitating the use of five-quarter lumber for milling on an industrial-grade molder. The stylish profile contains a 27/32" flat line with a 1/8" rounded outer edge on the top left. The fillet connects to a 7/64" deep by 3/16" wide perpendicular notch merged with a 3/8" congee with another 7/64" vertical step and a 1-5/8" horizontal line in the center. The last part of the design consists of a 1/4" wide by 1/8" deep rabbet with a 3/64" eased edge, leaving a 9/16" thickness dimension on the right corner of the design. We offer a one-inch larger version of this pattern for your review and consideration,
door casing 4.250" - 21.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.696
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
