Door/Window Casing 3-3/16" - 8
Door/Window Casing 3-3/16" - 8

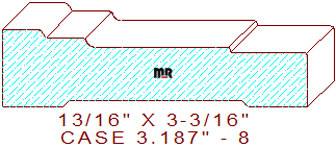

This custom 3.187" - 8 door/window casing measures 3.187" wide by .812" thickness, allowing the detail to be milled out of four-quarter lumber. The tiered profile is composed of a 29/64" wide by 3/32" tall raised fillet with a sharp square edge on the top left, joined to a 27/64" broad flat line merged with a 1-1/2" wide cong'e constructed from a 3/32" cove with a 1/16" drop in elevation in the center, attached to a 13/16" broad line segment with a 3/64" eased edge leaving a 9/16" thickness dimension on the right side of the pattern. We offer a few other alternative versions of this attractive design for your review and consideration,
door/window casing 4.437" - 6. and
door/window casing 4.500" - 20.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.440
Bottom Cutter Head
Width: 3.187
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
