Baseboard 6" - 192

Baseboard 6" - 192

Baseboard 6" - 192

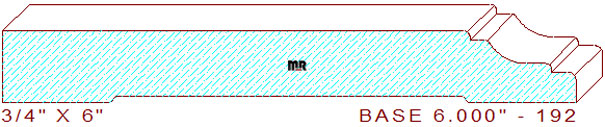

This modest 6" - 192 base moulding measures 6.000" wide by .750" thickness, permitting the pattern to be machined from four-quarter lumber. The unpretentious profile is composed of a 4-57/64" wide flat line and a 3/32" vertical step with a 1/16" rounded edge on the top center, attached to a 13/64" wide fillet with another 1/16" rolled edge that transitions into an 11/16" wide cong'e derived from a 29/64" cove, joined to a 1/4" wide line segment with a 3/32" eased edge on the right side of the design. We offer an alternative 7-7/8" mopboard, baseboard 7-7/8", and many beautiful door casing profiles that will compliment this design; here are a few you may want to review and consider, door casing 4.250" - 21 and door casing 4.250" - 31.

Try one of our fancy base shoes on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 0.679
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$407.50
$380.50
Total:
$788.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$434.50
$407.50
Total:
$842.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$461.50
$434.50
Total:
$896.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
