Baseboard 5-7/8" - 7
Baseboard 5-7/8" - 7

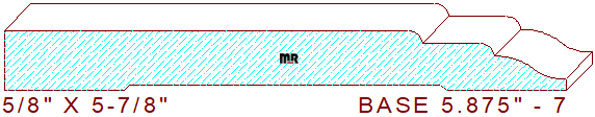

This designer 5-7/8" - 7 base moulding measures 5.875" wide by .625" thickness, enabling the detail to be milled out of four-quarter lumber. The custom profile is composed of a 4-3/8" wide straight flat line with a 5/32" inner eased edge in the left center, attached to a 3/4" flat line segment with another 5/32" rounded edge, merged with a 21/32" radius arc tangent off of a 15/32" concave semicircle creating the ogee, leaving a 1/8" thickness dimension on the right side of the pattern. Try one of our fancy
base shoes on the bottom portion of this detail, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.875
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
