Baseboard 3-3/4" - 16
Baseboard 3-3/4" - 16
This

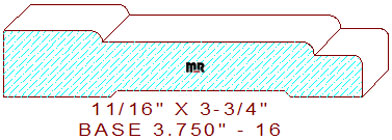

tiered baseboard 3-3/4" - 16 measures 3.750" wide by .687" thickness. The stepped profile is comprised of a 1-1/32" broad horizontal line with a 1/8" radius step at the bottom, connected to a 2-7/32" wide by 9/64" step also with a 1/8" eased edge, joined to a 1/2" wide by 7/16" thick section with a 3/32" radius edge at the top of the design. You may want to browse our
backout category for a suitable
relief cut for this detail; we have a few options to select from.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.505
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
