Baseboard 3-1/4" - 32

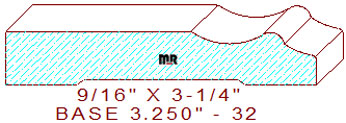

This decorative baseboard 3-1/4" - 32 measures 3.250" wide by .563" thickness, permitting the detail to be machined from four-quarter lumber. The attractive profile is composed of a 1-15/16" wide line segment with a 9/64" rounded inside edge on the top center, attached to an 11/16" concave semicircle tangent to a 5/32" convex arc, merged with a 45/64" cove with a 3/64" eased edge on the right side of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail; we’re confident you will find a suitable design to match your needs.

Are you thinking about possibly building an enclosed tool room for the profile knife grinder, template making machine, and a place to store all your acrylic templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost by not securing the lineal table bearings before moving the machinery.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .432" (top knives) & .062" (bottom cutters).
