Baseboard 3" - 17

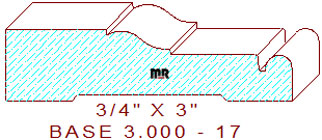

This decorative baseboard/casing 3" - 17 measures 3.000" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The striking profile composes a 1-1/16" wide by 1/16" deep stepped line on the left, connected to a small two tangent radius cyma reversa with another 1/16" drop in elevation, attached to a 15/16" wide line segment that joins to an 11/64" deep by 1/16" wide sunk fillet with a 9/32" wide half circle on the right side of the pattern. We offer a similar profile in the same width for your review and consideration. This detail has an extra step built into the profile design, baseboard 3.000" - 9.

If you're utilizing this detail as a door/window casing, try one of our many different fancy backbands profiles on the outer edge of this pattern, create a stylish and unique design for your beautiful home or office.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these milling operations.
