Base Cap 2" - 2
Base Cap 2" - 2
This

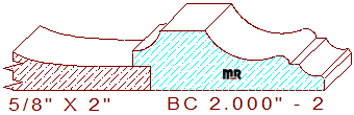

elegant base cap 2" - 2 measures 2.000" wide by .625" thickness, enabling the detail to be machined from four-quarter lumber. The decorative profile is composed of a 9/32" cove on the left, connected to a 15/32" flat line on top, attached to a 19/32" scotia tangent off of a 7/64" radius arc in the middle, joined to a 3/32" broad line segment and a 3/16" cove with a tiny chamfered edge on the right side of the pattern. The back side rabbet measures 1/4" wide by 1/4" tall, the partial profile that joins this pattern in the image above is
baseboard 7.000" - 47.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.000
Depth of Cut: 0.548
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
