Baseboard 7" - 47
Baseboard 7" - 47

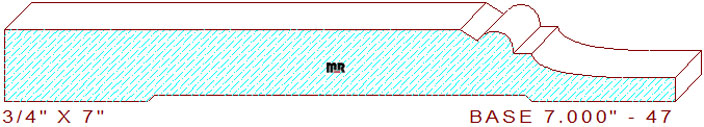

This traditional 7" - 47 baseboard moulding measures 7.000" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The standard profile is composed of a 4-3/4" wide flat section on the top left. It's attached to a 3/16" broad beveled line that joins to a recessed (.020") 3/8" wide half-round bead and a 3/16" broad line segment connected to a three tangent radius elliptical-shaped cong'e, leaving a 1/4" thickness dimension on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 7.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 7.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
