Backout/Relief Cut 8-1/4"
Backout/Relief Cut 8-1/4"

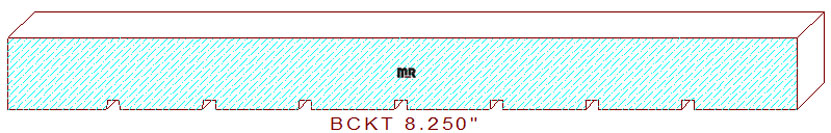

This 8-1/4" backout measures 8.250" in width. The symmetrical pattern comprises seven 1/8" wide by 3/32" deep grooves, divided by 7/8" broad horizontal lines in the center and 1-1/16" broad flat areas on both sides of the detail section. The maximum width these knives can mill is 9.000" wide, with the cutterhead at .000" axially. The saw kerf profile can be utilized on many of our stylish and creative
tongue and groove details, interior & exterior door jambs, and
shiplap siding profiles.
Ever wonder why molding cutters break from time to time? Read our commentary on knife breakage for possible causes and solutions to this phenomenon. We offer exceptional grades of quality high-speed steel and carbide in various size widths for grinding and milling our designs.
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
