Backout/Relief Cut 6" - 8
Backout/Relief Cut 6" - 8

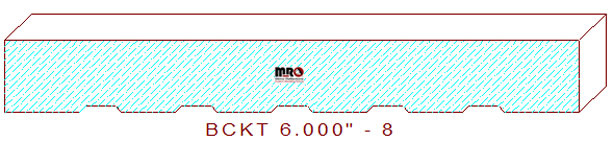

This custom-shaped 6" - 8 backout design comprises five 7/16" wide by 1/16" deep, trapezoid-shaped plows flanked by 9/16" wide straight fillets in the center, with a 25/32" broad segment on each side. The maximum width of these knives can mill 6-3/4" wide when the cutterhead is positioned at .000" axially.
Would you like to reduce the time it takes to set up the machinery for a milling production run? Perhaps calibrating the cutterhead spindles axially and radially will substantially decrease setup time while simultaneously increasing production.
The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
