Architrave/Header 5-1/2" - 11

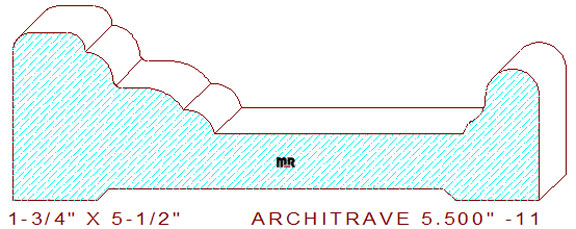

This beautifully bold architrave/header 5-1/2" - 11 measures 5.500" wide by 1.750" thickness, necessitating the need for eight-quarter lumber for milling on an industrial machine. The gentile downsloping profile is composed of a 3/4" wide by 3/16" tall raised fillet with 3/16" eased edges on the left, connected to a 5/16" quarter round arc that transitions into a 3/32" cove with a 1/2" radius curve and another 5/16" quarter circle, joined to a 2-19/32" wide sunk fillet at an 11/16" thickness dimension slightly to the right of the center, attached to a two tangent radius curve with a 9/16" wide half-circle on the right side of the design. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we're confident you will find a functional design to suit your needs.

Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks to learn how machine feed rates and rpm of the cutter head can directly affect the quality of your finished profiles.
