Architrave/Header 5-1/2" - 1

Architrave/Header 5-1/2" - 1

Architrave/Header 5-1/2" - 1

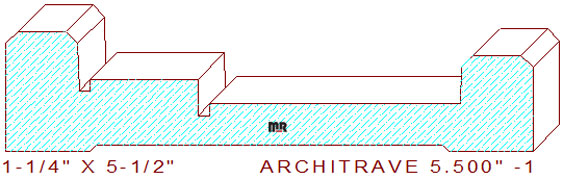

This southwest-style 5-1/2" - 1 architrave/header measure 5.500" wide by 1-1/4" thickness enabling the pattern to be milled from six-quarter lumber. The distinctive profile has a southwest architectural appeal consisting of two towering raised fillets with chamfered edges and two small sunk fillets that divide the horizontal and vertical steps within the beautiful design. Our eminence derives from over thirty-five years of experience and the superior functionality of all our custom knife profiles. Browse our backout category for a suitable relief cut for this detail, we're confident you will find the right one to suit your needs.

We invite you to search for other design ideas for your elegant home or office; we have over 15,000 alternative pattern options for you to choose from; alter the search parameters to view.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.875
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$380.50
$355.50
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$380.50
Total:
$786.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$405.50
Total:
$836.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
