Trim 3" - 19
Trim 3" - 19

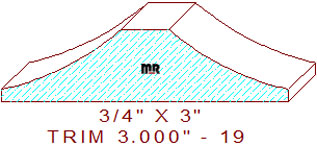

This 3" - 19 wine rack trim measures 3.000" wide by .750" thickness. The profile is comprised of a 1/2" wide horizontal line in the center flanked by a 2-7/8" radius cavetto on each side, leaving a 1/8" tall vertical line on the edges of the pattern. These patterns are utilized to assemble stemware racks for storing glassware upside down from the wide base of the stem at the bottom of the glass. This molding style is applied to a shelf or the bottom of an upper cabinet. You see these in and around wine-tasting areas, pubs, restaurants, and fancy homes with stylish cabinetry. We have many different options for these types of stemware, here are just a few examples you may want to review and consider,
trim 3.000" - 3, trim 3.000" - 5 and
trim 3.000" - 7.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.657
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
