Tongue & Groove 3/4" - 83
Tongue & Groove 3/4" - 83

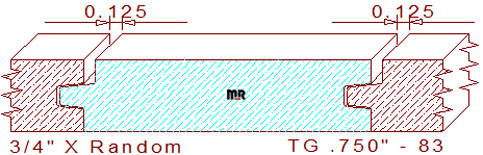

This 3/4" - 83 nickel board siding measures .750" thickness, allowing any sized blank of four-quarter lumber for milling. The width is milled to any desired size within the moulder/shaper parameters used to cut the pattern. The profile comprises a 3/8" wide by 1/4" tall offset tongue. The groove dimension is 1/4" tall by 9/32" wide; there is a .015" void in the joint for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber get joined together, they create a 1/8" channel (commonly called nickel board) on one face side of the merged boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.281
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
