Tongue & Groove 3/4" - 68
Tongue & Groove 3/4" - 68

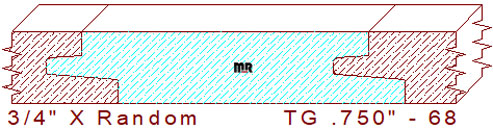

This creative 3/4" - 68 tongue & groove butt joint measures .750" thickness, permitting the detail to be machined out of four-quarter lumber; widths can be cut to any desired size within the parameters of the moulder/shaper used to mill the pattern. The versatile profile consists of a centered and offset 1/4" tall by 3/4" deep tongue and groove. This provides the joint with greater structural integrity and blind-nailing capabilities. When two boards are joined, they create a simple but effective butt joint.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.754
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.747
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
