Tongue & Groove 3/4" - 57
Tongue & Groove 3/4" - 57

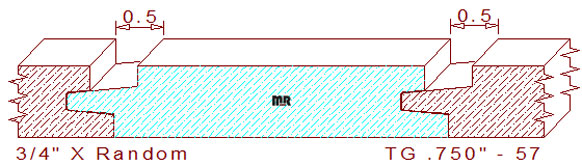

This 3/4" - 57 channel siding measures .750" in thickness; widths are adjusted to any desired size within the parameters on the moulder used to mill the pattern. The profile consists of a 1/4" tall by 3/4" deep offset tongue and groove flanked by 1/4" tall fillets. This lapped t & g detail is a perfect profile for blind nailing during the installation process. When two milled pieces of lumber are joined together, they create a 1/2" wide by 1/4" deep channel on one face side of the merged boards. There is a .008" void in the joint area for expansion and contraction during seasonal changes in relative humidity.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.500
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.740
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
