Tongue & Groove 3/4" - 37

Tongue & Groove 3/4" - 37

Tongue & Groove 3/4" - 37

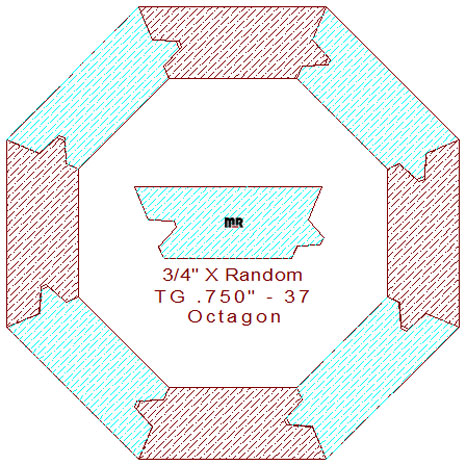

This functional 3/4" - 37 tongue & groove octagon measures .750" in thickness; widths are manufactured to any desired size within the machinery parameters used to mill the pattern. The cutters can mill a sixty-seven and one-half degree angle with a slanting tongue and groove on each side of a board measuring 3/4" thickness. After machining, these will create an octagonal-shaped column by joining eight pieces of lumber together. We purposely left a few thousandths of an inch void in the joining area for glue to escape from during fabrication. We have successfully used Scotch or 3M # 355 tape for tight joints and easy assembly. This tape does not stretch, which will ensure the joint does not move while drying after the drying process has been completed, use a small amount of solvent to dissolve the glue on the tape; you don't want the tape to raise the grain of the lumber, you can create some of the finest looking octagonal-shaped columns or newel post in the woodworking industry with this design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.444
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.358
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
