Tongue & Groove 3/4" - 22
Tongue & Groove 3/4" - 22

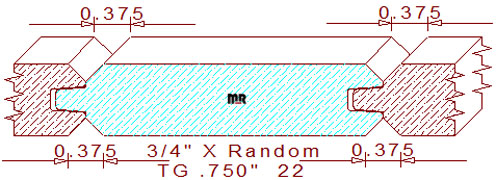

This 3/4" - 22 double v-groove siding measures .750" in thickness, and widths can be machined to any desired size within the parameters of the moulder/shaper used to mill the pattern. The profile consists of a 3/16" wide and deep forty-five-degree chamfer on each side edge, connected to a 1/4" wide by 5/16" deep tongue and a 1/4" wide by 3/8" deep groove. There is a .008" void in the joint area for expansion and contraction of the wood during seasonal changes of relative humidity. When two pieces of milled lumber are joined, they create a 3/8" wide v-groove on both faces of the joined boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.570
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
