Tongue & Groove 11/16" - 5
Tongue & Groove 11/16" - 5

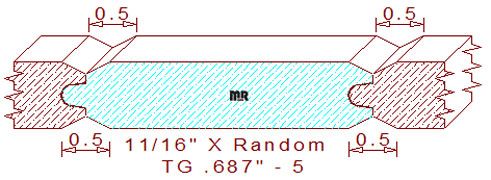

This 11/16" - 5 tongue and groove siding measures .687" in thickness, and the width can be milled to any desired size within the molder's parameters to produce the pattern. The profile comprises a 1/4" wide by 1/4" tall tongue and groove with a 1/4" wide by 1/8" deep chamfer on each side edge of the pattern. When two pieces of milled lumber are joined, they create a 1/2" wide by 1/8" deep V groove on both face sides of the joined boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.687
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
