Tongue & Groove 11/16" - 19
Tongue & Groove 11/16" - 19

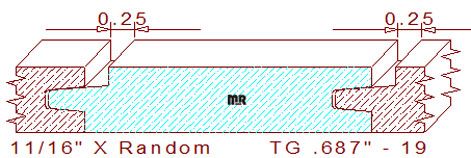

This 11/16" - 19 gap siding measures .687" in thickness; the width can be milled to any desired size. The tongue profile measures 1/4" wide by 5/8" deep. The groove side dimension is 1/4" wide by 13/32" deep with a .010" void area to assure an excellent fit as well as compensation for seasonal changes in relative humidity. When two pieces of finished milled lumber are joined, they create an ornamental 1/4" wide channel/gap on one face side of the merged boards.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.406
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.625
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
