Tongue & Groove 11/16" - 18
Tongue & Groove 11/16" - 18

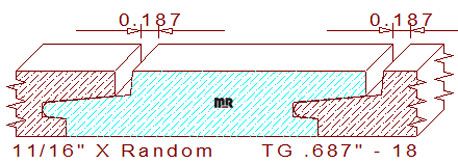

This appealing 11/16" - 18 gap siding measures 11/16" in thickness, and widths are adjusted to the required size during milling. When two pieces of lumber are joined together, they create a 3/16" wide gap/channel for decorative purposes. The profile comprises a 15/16" wide offset tongue and a 3/4" wide offset groove specifically designed for blind nailing during installation. This unique design provides a solid surface to nail. Without this offset, it raises the probability of splitting the lumber on the tongue portion due to a void area behind the tongue when nailed. In the channel portion of the pattern, there is a five-degree chamfer to allow moisture to run onto the face of the siding and away from the joining area.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.760
Left Cutter Head
Thickness: 0.687
Depth of Cut: 0.969
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
