Tongue & Groove 5/8" - 19
Tongue & Groove 5/8" - 19

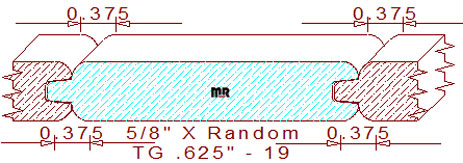

This 5/8" - 19 rolled edge tongue & groove paneling measures .625" thickness, permitting using four-quarter lumber for milling on a commercial moulder. The width is manufactured to any desired size within the machinery parameters used to cut the pattern. The decorative detail contains a 1/4" by 1/4" tongue & groove with 3/16" rounded edges on all corners. There is a built-in .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.338
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.594
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
