Tongue & Groove 5/8"
Tongue & Groove 5/8"

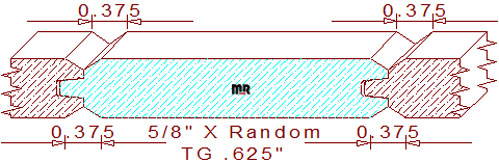

This 5/8" tongue & groove siding measures .625" thickness, allowing any size width of four-quarter lumber for milling on an industrial moulder. The wide panels are for covering walls & ceilings to form a beautiful interior look. It consists of a 13/64" tall by 9/32" deep groove with a 3/16" wide angle on the right edge. The opposite side retains the identical chamfer with a 13/64" high by 1/4" wide tongue. There is a built-in void of .010"; this space is for the expansion and contraction of the wood during seasonal changes in relative humidity. When two milled pieces of lumber join, they create a 3/8" wide by 1/8" deep v-groove where the boards meet.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.342
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.592
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
