Tongue & Groove 9/16" - 3
Tongue & Groove 9/16" - 3

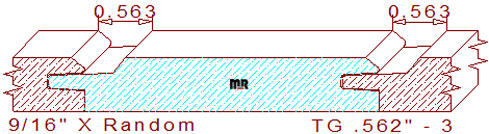

This 9/16" - 3 tongue & groove siding measures .562" in thickness, and the width gets milled to any desired size within the parameters of the moulder/shaper used to machine the pattern. The profile comprises a 3/16" tall by 25/64" wide groove, a slightly chamfered edge on the right, and a 3/16" tall by 7/8" wide tongue with a beveled edge on the left. When two pieces of milled lumber join, they create a 9/16" wide by 5/32" deep v-shaped channel on one face side of the merged boards. There is a .010" void in the joint area for expansion and contraction of the lumber during seasonal changes in relative humidity.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.563
Depth of Cut: 0.394
Left Cutter Head
Thickness: 0.563
Depth of Cut: 0.870
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
