Tongue & Groove 1/2" - 13

Tongue & Groove 1/2" - 13

Tongue & Groove 1/2" - 13

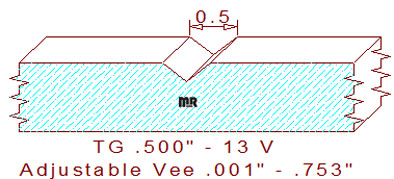

This 1/2" - 13 v-groove is for tongue & groove or shiplap siding. It's designed for a six-cutter head industrial moulder with two top horizontal spindles or milled on the last bottom cutter head on a five-spindle moulder. The universal profile allows the machine operator to mill to thickness on the first top cutter head and then place this v-groove anywhere on the board with the second top set of knives. The set of knives consists of two fifty-three-degree bevels at 9/32" depth of cut. These cutters can mill a v-groove at any width from .001" to .753" wide; the width size of the v-groove is controlled by how deep the knives are set radially on the machinery.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.750
Depth of Cut: 0.281
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$130.50
Not Needed
Total:
$130.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$137.50
Not Needed
Total:
$137.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$144.50
Not Needed
Total:
$144.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
