Tongue & Groove 3/8" - 8

Tongue & Groove 3/8" - 8

Tongue & Groove 3/8" - 8

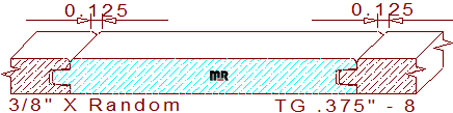

This 3/8" - 8 tongue & groove paneling measures .375" thickness, enabling machining out of resawn five or solid four-quarter lumber. The width gets milled to any desired size within the parameters of the moulder or shaper used to cut the pattern. There is a .006" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber get joined; they create a decorative 1/8" wide rounded edge v-shaped joint on the face side of the merged panels. The attractive profile is composed of a 7/32" wide by 5/32" tall groove with a 1/16" eased edge. The opposite side retains a 3/16" wide by 5/32" tall tongue with a 1/16" rounded edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.375
Depth of Cut: 0.218
Left Cutter Head
Thickness: 0.375
Depth of Cut: 0.405
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
Not Needed
Not Needed
Total:
$261.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
Not Needed
Not Needed
Total:
$275.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
Not Needed
Not Needed
Total:
$289.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
