Tongue & Groove 7-1/2"

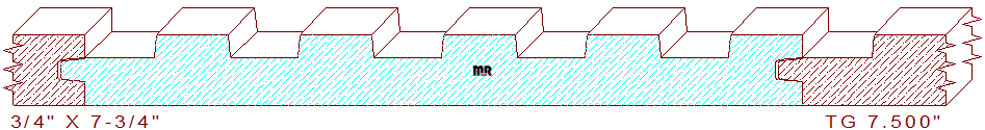

This 7-1/2" tongue & groove channel siding 7.500" measures 7.750" wide overall by 3/4" thickness, requiring an eight-inch wide blank of four-quarter lumber for milling on a commercial molder. When two pieces of finished lumber are joined, they create a 7-1/2" face coverage dimension. The dadoed profile contains a 1/4" wide by 1/4" tall tongue and groove with a .010" void in the joint area for expansion & contraction of the wood during seasonal changes in relative humidity. The face of the pattern consists of five 3/4" wide by 1/4" tall raised fillets divided by five 3/4" wide sunken fillets creating the channels.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative t&g siding pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job a lot easier in the production process.
