Tongue & Groove 6-7/8" - 2

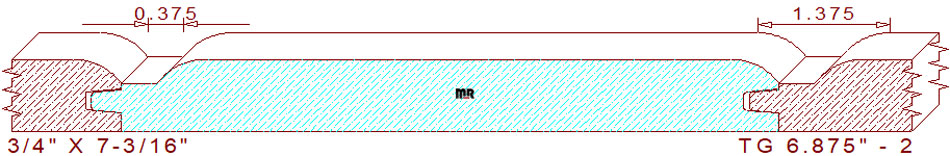

This 6-7/8" - 2 channel tongue & groove siding measures 7.188" wide by .750" thickness, permitting the pattern to be machined out of four-quarter lumber. The beautiful, functional profile is composed of a 6-1/2" broad line segment with 5/8" rounded edges and a 3/8" sunk fillet at a 1/2" thickness dimension on the top. The right side retains a 3/8" wide by 1/4" tall groove, the left side consists of a 5/16" wide by 1/4" tall tongue with a built-in .008" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber are joined together, they create a decorative 1-3/18" wide by 1/4" deep rounded edge channel with a 3/16" flat section in the center, with an exposed face coverage dimension of 6-7/8" wide.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing moulding knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.
