Tongue & Groove 6.000" - 6

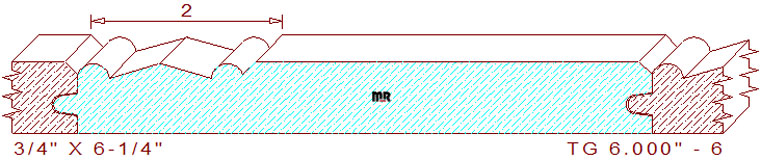

This unique 6.000" - 6 tongue & groove siding measures 6.250" wide by .750" thickness overall, and the face dimension is 6.000" wide. The creative profile is comprised of a 4-9/64" wide straight line, attached to decorative bidirectional angled lines that connect to two 11/64" radius half-round circles flanked by beveled lines. When two pieces of milled lumber are joined together they create a 2" wide embellished detail between the merged boards. There is a total of .015" void in the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. The small half-round circles are recessed by .023" to allow for sanding after milling, so you don't flatten the beads in the process.

This Cad generated DXF file contains four professionally designed profile template drawings with abundant information to create cutters for this beautiful tongue & groove detail. We always provide sufficient blend areas in the knives, so no one will ever realize where one cutter begins or ends.
