Tongue & Groove 5-3/4" - 2

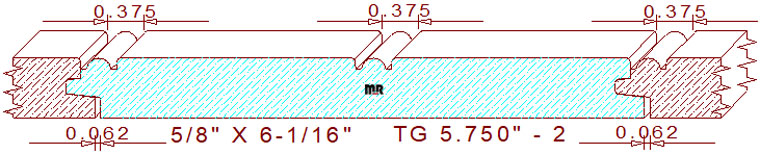

This 5-3/4" - 2 beadboard tongue & groove measures 6.062" width by .625" thickness, requiring a 6-5/16" wide blank of four-quarter lumber for milling on an industrial-style molder. The beaded profile contains two 3-1/16" flat sections in the center flanked by 1/16" broad sunk fillets with 1/16" round-overs used in transition to the 2-1/2" broad flat sections. Both half-beads are lower than the surface plane by 1/64" for sanding if requested. A .006" void is built into the joint area for expansion and contraction of the wood during seasonal changes in relative humidity. When two pieces of milled lumber get joined, they create 3/8" wide channels on the exposed 5-3/4" broad face, with a 1/16" gap on the bottom side of the merged boards to enable blind nailing during installation.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that unique profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easily the services we provide can increase productivity and reduce your manufacturing cost.
