Tongue & Groove 5-1/2"

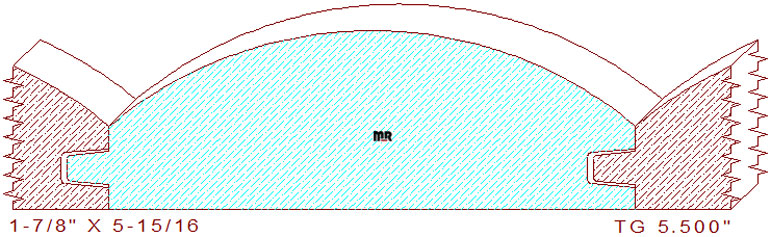

This 5-1/2" log cabin siding tongue & groove measures 5.937" wide overall, with a face coverage dimension of 5-1/2" wide by 1.875" thickness, enabling the pattern to be machined from eight-quarter lumber. The beautiful profile is composed of a 4-9/32" radius arc across the entire face of the pattern. The tongue and groove portion consists of a 1/2" wide groove and a 7/16" wide tongue with a .062" void in the joint area, this will aid in the installation process as well as allow for expansion and contraction of the wood during seasonal changes in relative humidity.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.
